Wiring in a GPS

[KelkyD]

Hi I am trying to find a plug inside the front fairing to connect an external GPS. There is 3 connections under the fairing. The trouble is which one to use so the GPS only comes on when you turn the ignition on. I have included two photo’s of the plug I think is the right one. I purchased an auxiliary plug for an external lighter for the saddle bag but it did not fit. There is kits on the Harley site but I don’t want to have it wired through a switch. Any help locating the right plug and what elelctrical cord to get would be greatly appreciated.
thanks



[buck99rog]

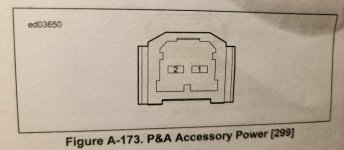

You need to locate connector 299. Looking at the bike it should be located near your GPS antenna. It has 2 wires, 1 black and the other violet with a blue tracer. It may have a plug cap installed in it.



[KelkyD]

Thanks. I will try to find that connection. Where did you find the connector for $11.95?



[buck99rog]

Found the splitter on H-D.com.



[KelkyD]

thanks again found it and ordered it this morning.



[KelkyD]

The middle picture is out of what book? Do they make a Hines book for streetglides?



[buck99rog]

The first two are from my h-d service manual. The other is a screen shot from H-D.com. I don't know if Haynes makes a repair manual for it, I just ordered manual from the dealership when I bought my bike.
